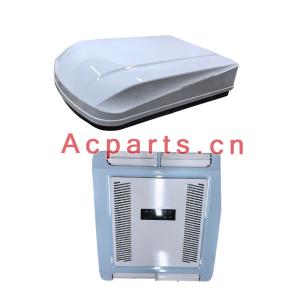

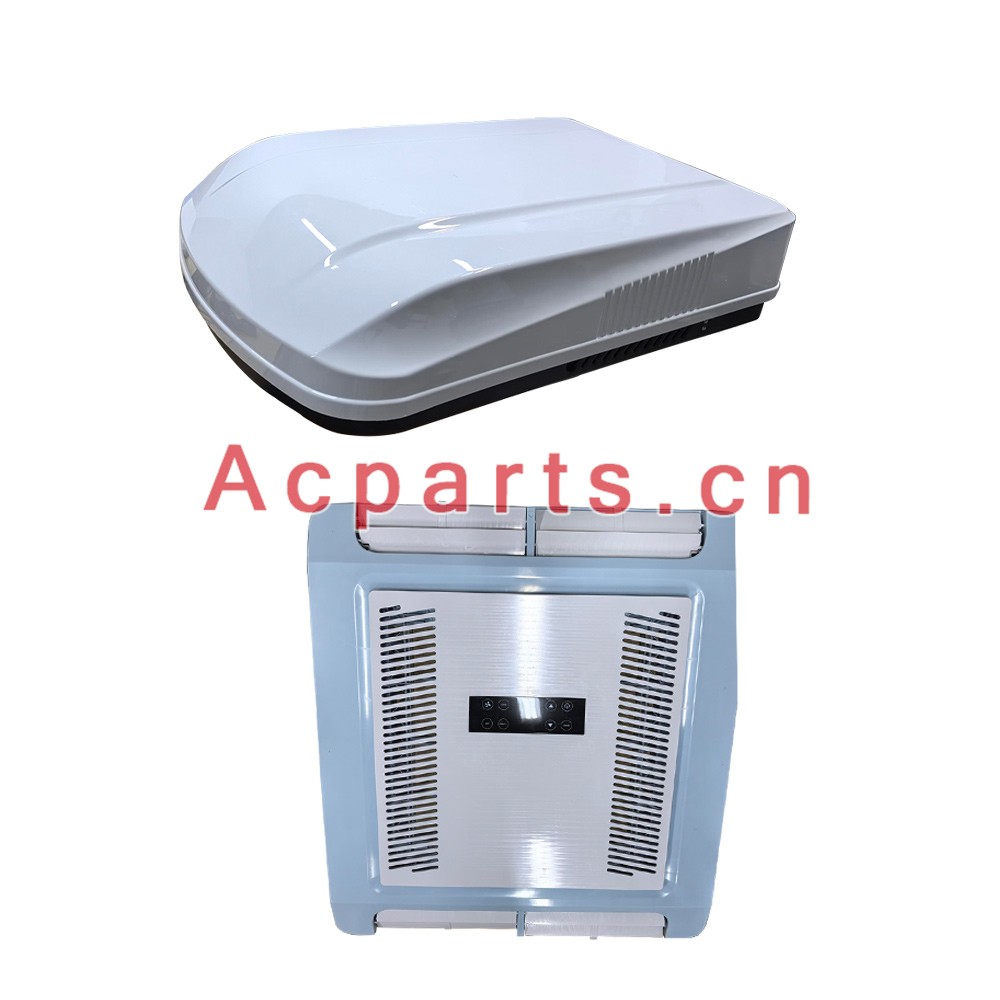

AC.132.033.02

Model No:115V
Type:Full DC Inverter
Current (Cooling):8.7-14.0A/8.7-12.2A
Net Weight (Rooftop):44kg
Gross Weight (Rooftop):46kg
Rated Cooling Capacity:10000-15000 Btu
Power consumption(Cooling):1000-1650W
EER/COP:1.8-2.0/2.3-2.5
Controller:Remote Controller
Air volume(high speed):650m³/h
Noise Level (L/M/H),indoor:56/59/62 dB(A)
Noise Level (L/M/H),outdoor:59/62/65 dB(A)
Refrigerant (charge):R32
Compressor:GMCC Horizontal type
Net Dimensions (Rooftop A/C):W769*H240*L1062(mm)
Packing Dimensions(Rooftop A/C):W844*H338*L1137(mm)
Net Weight (Indoor Panel:3.5kg
Gross Weight (Indoor Panel):4.5kg
Net Dimensions (Indoor Panel):W515*H65*L582(mm)
Packing Dimensions(Indoor Panel):W575*H145*L647(mm)
Ceiling opening dimension:400*400mm,or 362*362mm optional
Ceiling thickness range:26mm~~100mm additional thicker avaiable
Ambient temperature range suggested:from 18 ℃to 43 ℃
Indoor temperature set range:from 18°Cto 30°C(from 64.4°F to 86°F)
Base chassis:High strength metal
